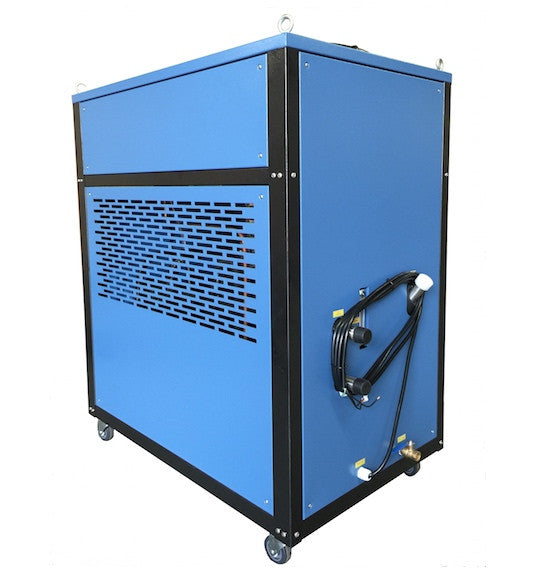

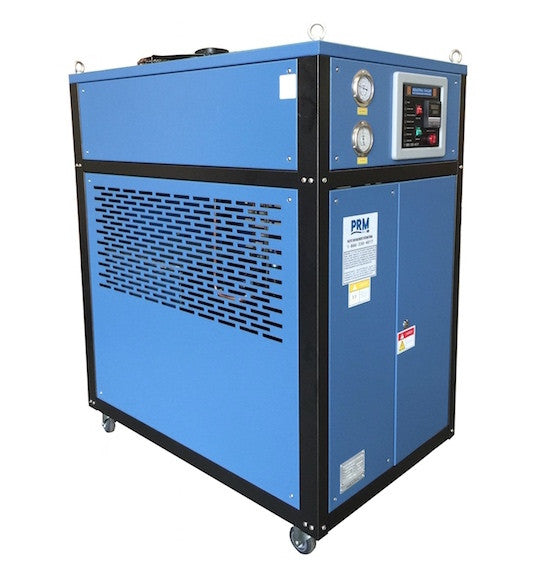

PRM 3 Ton Portable Water Chiller - Air Cooled
Ships within 1-3 business days from San Bernardino, CA. Please click on 'FAQs' and "Shipping' tabs below for additional information.
|Full Load Amps||220V 16
|Lowest Temp Setting||41°F (5°C)|
|Tank Capacity (gal)||15|
|Max Flow (gpm)||22|
|Inlet/Outlet Connection (in)||1"|
Technical specifications based on 10°C outlet water temperature, 40°C condensing temperature, and 220V voltage. Data is subject to change without notice.
Brand new heavy duty portable water chillers, virtually compatible with any closed-loop application. Suitable for but not limited to: Manufacturing, Plastics & Rubber, Metalworking, Welding, Oil & Gas, HVAC, Food & Beverage, Medical, and more!
Industrial strength cooling at an affordable price. It comes fully charged with freon and is ready to use out of the box. No complex installation requirements; just hook up basic inlet & outlet connections. User friendly interface allows for easy operating controls and best suited for general water cooling purposes.
- Copeland Scroll Compressor
- Stainless steel plate heat exchanger
- Charged with R-407C refrigerant
- Includes pump and water reservoir
- User friendly temperature controller
- Alarm detection for abnormal pressures and overloads
Easy Setup & Operation
- Connect inlet & outlet water lines and fill up the internal reservoir
- Turn on water pump and check that the flow returns to inlet
- Set desired temperature set points
- Turn on the compressor and let the chiller handle automatic cooling
1. Where are the units made?
Units are assembled in our overseas factory in China. Stocked in our CA warehouse.
2. Does the unit include a water pump?
Yes, the unit is fully packaged. It has the pump, water tank, inlet/outlet piping, fans, compressor, evaporator, and condenser all installed. Also comes fully charged with freon.
3. Does the unit come with warranty?
Yes, the unit comes with a 1 year factory warranty against any defects. Parts & labor included. Ask for our warranty sheet for more information.
4. What sort of issues can I expect from this unit?
With proper installation and maintenance, no major issues.
5. IS THIS UNIT A RIGHT FIT FOR ME?
We cannot make that decision for you. We guarantee that our unit performs to advertised specifications, but the end user must decide if the chiller meets their application requirements. For most applications that just need a basic general purpose chiller to cool down process water, our chillers generally work great. Our only requirements are 1. the chiller must be used in a true closed-loop circuit 2. chiller must be placed in a well ventilated area and 3. the water lines must be short enough to get good return flow.
6. I'm running an open loop process, can I still use this chiller?
If you have an open loop process, ask us about a tankless conversion.
7. Can I run glycol?
Yes, we recommend a 30% glycol-water mix. Ph level must be balanced between 6-8.
7. What is the lead time to purchase and receive a unit?
Typically very quick -- if the unit is in stock. We ship within 1-3 business days of payment received. Transit time will vary depending on customer location.
Payment: Orders can be placed directly through our website. Add product to cart and follow the checkout instructions. Orders can be paid online via credit card or Paypal. If paying by check or wire transfer, select the option and follow remit instructions.
Shipping: Shipping rates are automatically calculated during the checkout process. All units are crated and shipped via LTL service. Receiving customers must have a dock or forklift to unload. Lift-gate service is available for an additional $85 fee. A shipping confirmation email will be sent with a Pro tracking number attached.
Sales Policy: All sales are final. We back our product's specifications, but the customer is responsible for interpreting product specifications. Returns and exchanges are fulfilled for factory defected units only. For our full sales policy click here.
|Warranty||1 Year Factory Warranty|
|Shipping Weight (lbs)||506|
|Shipping Dimensions (in)||51" x 32" x 61"|
